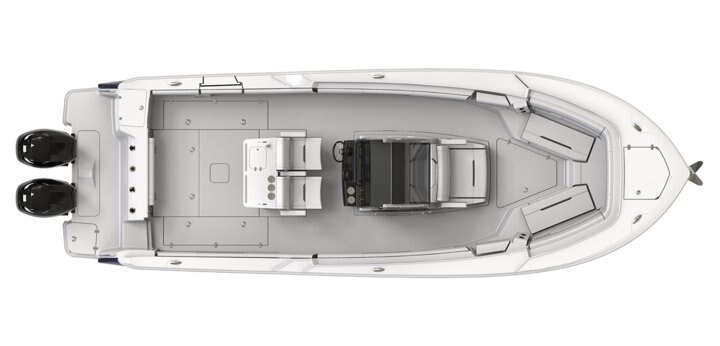

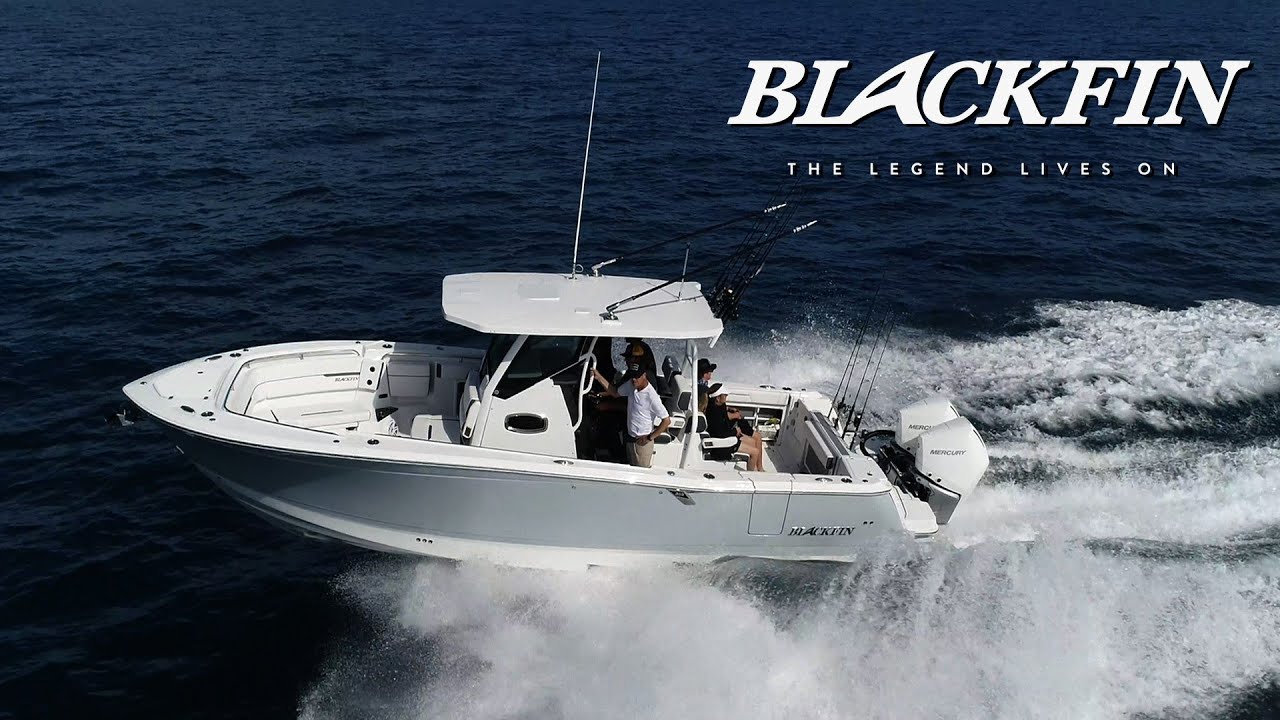

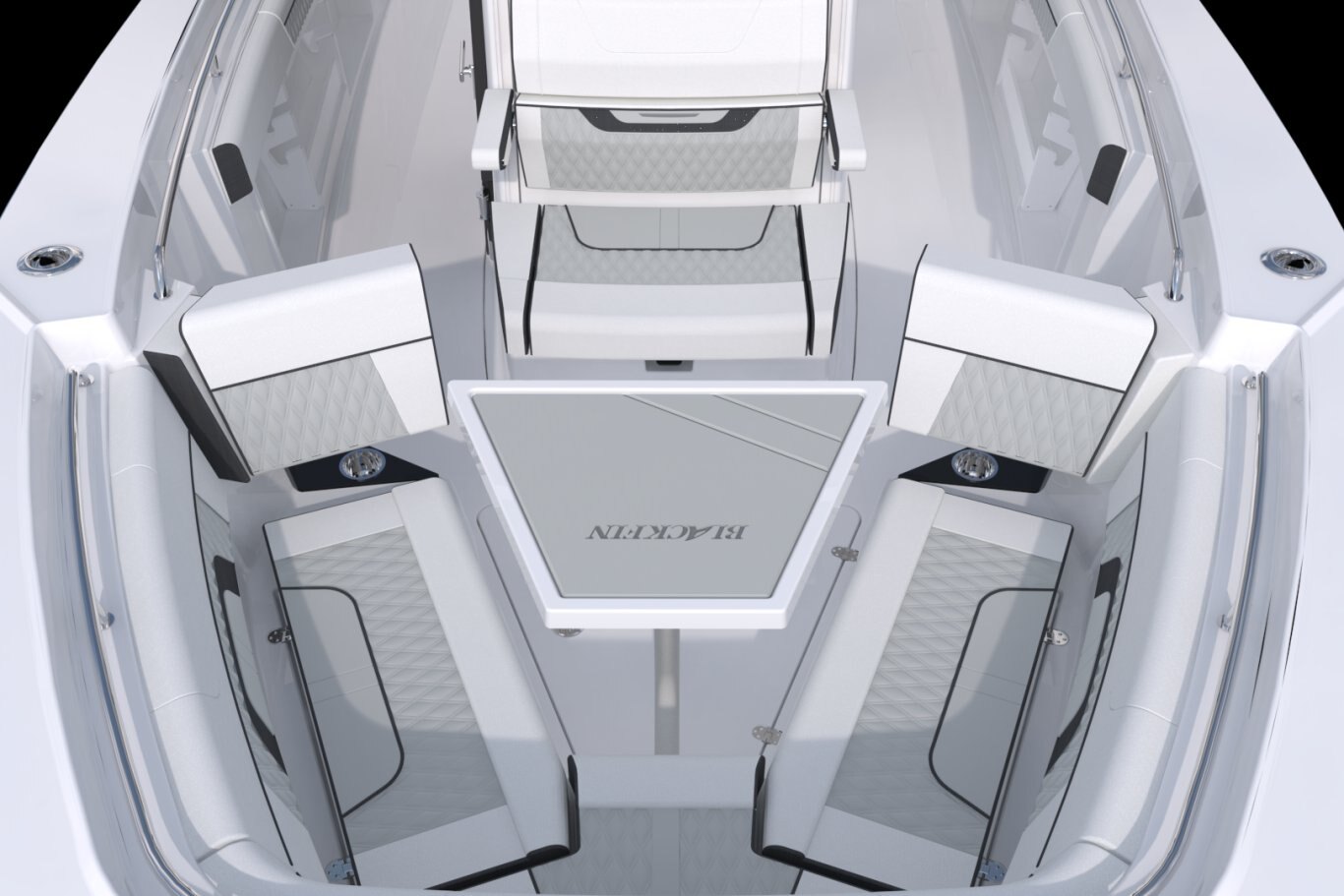

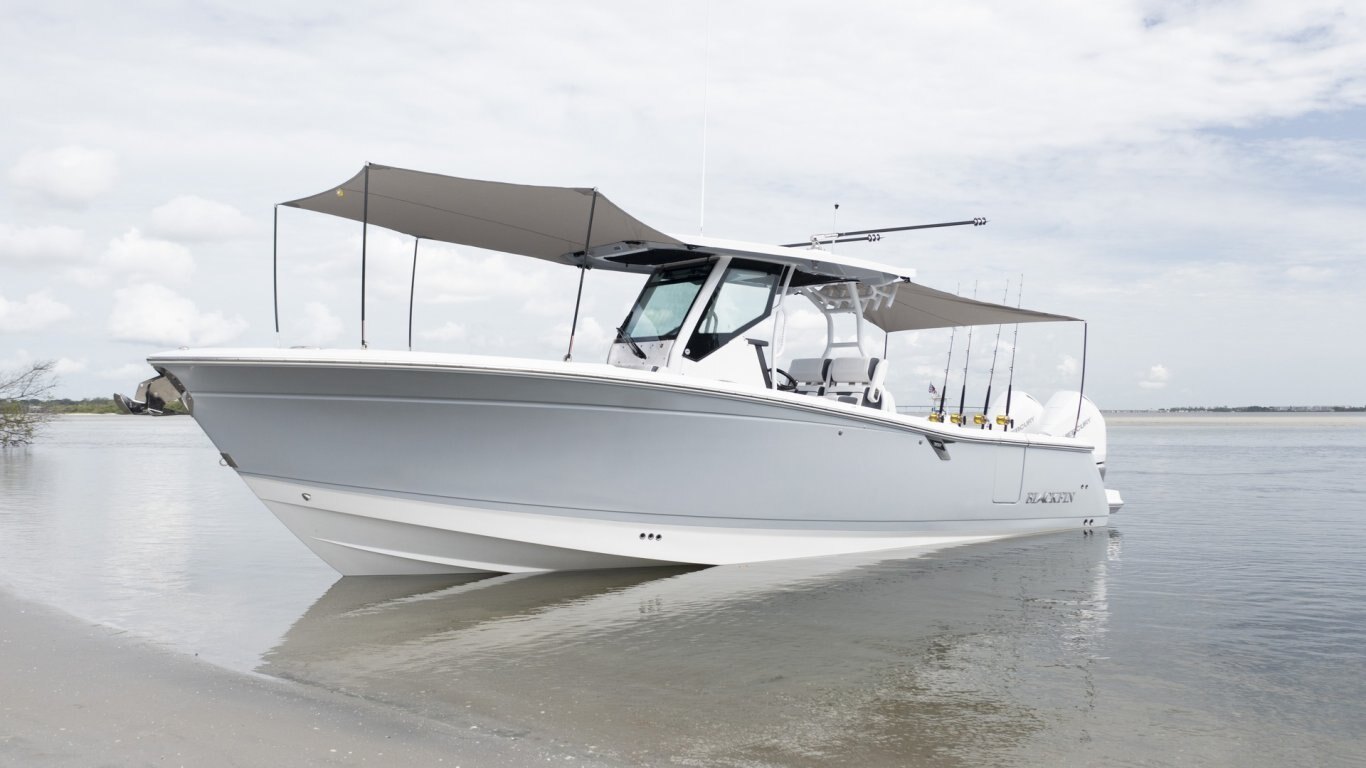

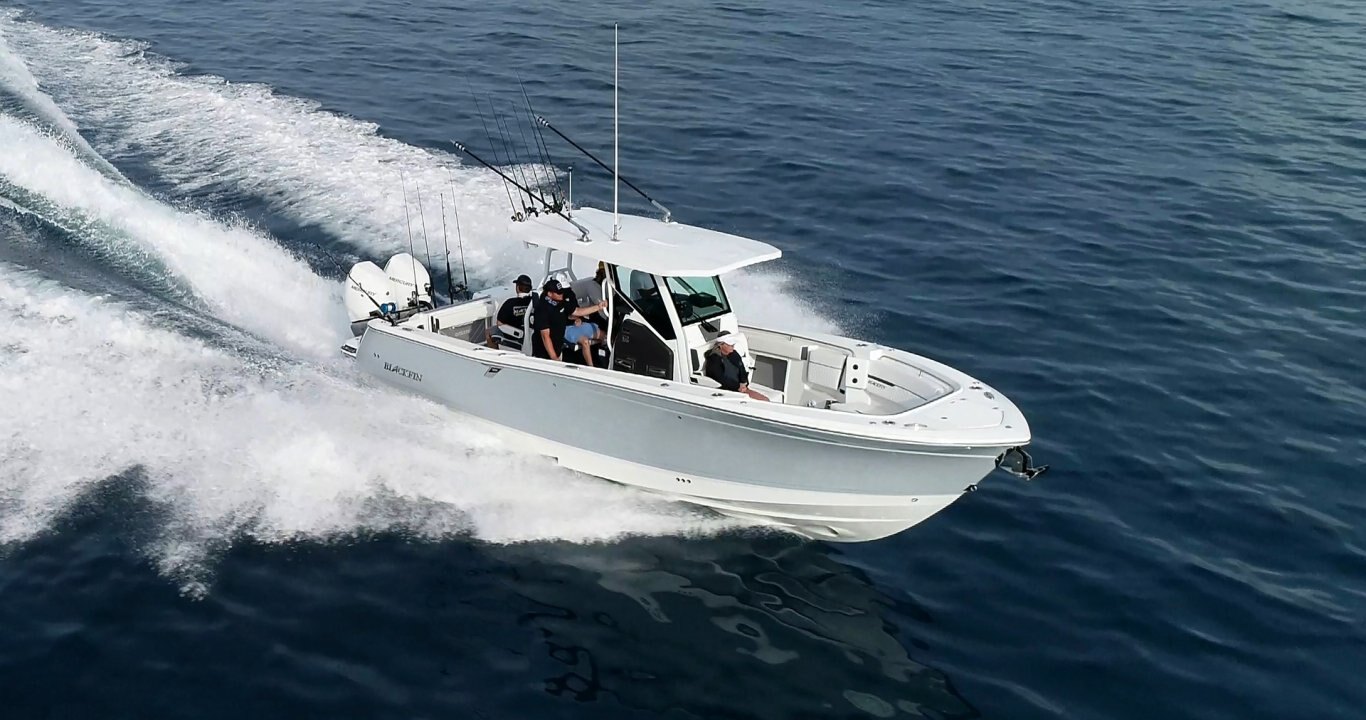

Featuring a 10’0” beam, and LOA with engines of 32’8”, the 302CC has an open, and well-designed layout making it the perfect choice for offshore fishing, recreational activities or destination boating. With an extensive choice of Mercury engines, and featuring a double stepped hull designed by Michael Peters Yacht Design, the 302CC offers one of the smoothest and most efficient rides in its class.
|
|
|
| Spec | US Unit | Metric Unit | Description |
|---|---|---|---|
| LOA w/Swim Platform | 30'2" | 9.19M | Length Overall, including Swim Platform |
| LOA W/Engine | 32'8" | 9.96M | Length overall with engine |
| Beam | 10'0" | 3.05M | Width of hull at widest section including rubrail |
| Deadrise | 23° | 23° | Angle of keel measured at transom |
| Draft - Engine Up | 20" | 50.8CM | Depth of hull to lowest point, Outboard trimmed up |
| Draft - Engine Down | 33" | 83.8CM | Depth of hull to bottom of outboard, trimmed down |
| Bridge Clearance W/Hardtop | 8'9" | 2.67M | Height from water to highest point on hardtop, normal load |
| Fuel Capacity | 240GAL | 908.5L | Capacity of fuel tank in gallons/liters |
| Water Capacity | 50GAL | 189.3L | Capacity of water tank in gallons/liters |
| Waste Capacity | 11GAL | 41.6L | Capacity of waste tank in gallons/liters |
| Dry Weight without Engines | 9000LB | 4082KG | Mass of boat without engine(s) and batteries, no fuel, water, waste, or gear |
| Max Persons | Yacht Certified | 14(CE) | Maximum Rated Persons Capacity |
| Max Power | 800HP | 597KW | Maximum horsepower for safe operation |
